Vacuum Manifold Kit - Connects and Controls Vacuum Supply to Vacuum Chuck

Simple Woodturning Tools SKU: Vacuum Manifold Barcode: 0632181498057

$63.37

Available Now!

Vacuum Manifold Kit - Connects and Controls Vacuum Supply to Vacuum Chuck.

This beautiful 100% brass manifold provides a simple way to connect and control the vacuum supply to your vacuum chuck.

This kit includes everything needed to connect a Simple Woodturning Tools® vacuum chuck to a vacuum pump with 1/4 NPT female threads on the intake fitting. We do not sell vacuum pumps, however we recommend Robinar 15310 single stage 3 CFM pump, which can be purchased on Amazon, or Best Value Vacs VE115 pump. Some pumps do not have 1/4" NPT threads on the intake fitting, so an adapter may be needed.

Don't have a vacuum chuck for your lathe? Check out this one.

Gauge shows vacuum in the chuck. Valve releases vacuum so parts can be removed or adjusted. All fittings are 1/4" NPT.

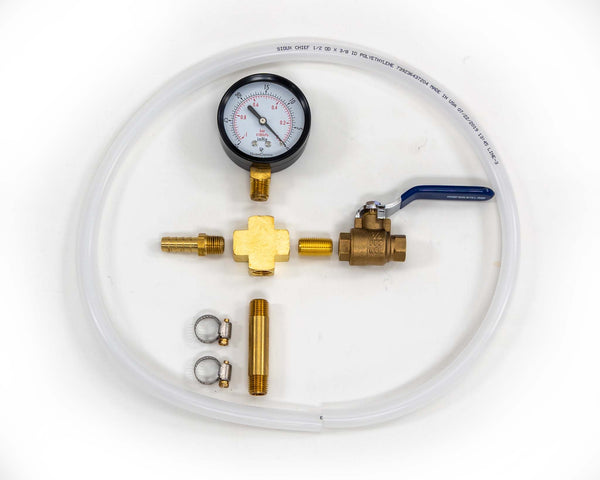

What's in the box:

  • 1 - Vacuum gauge with 1/4" NPT male fitting
  • 1 - Vacuum bleed valve with 1/4" NPT female fittings
  • 1 - Brass 4 way coupler - 1/4" NPT
  • 1 - Brass hose barb - 1/4" NPT x 3/8" hose barb
  • 1 - Brass nipple - 1/4" NPT x 2.5" length
  • 1 - Brass close nipple - 1/4" NP
  • 2 - Stainless steel hose clamps
  • 36" - 3/8" ID polyethylene tubing

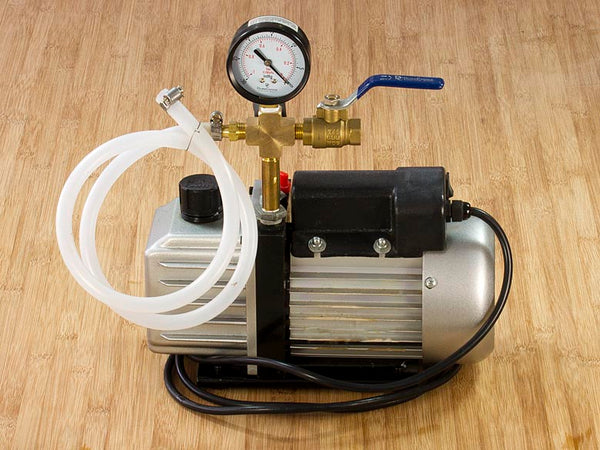

Nothing else shown in the photos, like the vacuum pump for example, is included.

Source for the vacuum pump: We use this Robinair pump: Link to Amazon pump
We've also used Best Value Vacs pump VE115 which comes with a mist filter.

Here's a video showing how it works.
