Lathe Headstock Spindle Reducing Adapter with Thru Hole for Vacuum Chuck - Converts 1-1/4"-8 TPI to 1"-8 TPI

Regular price $51.95

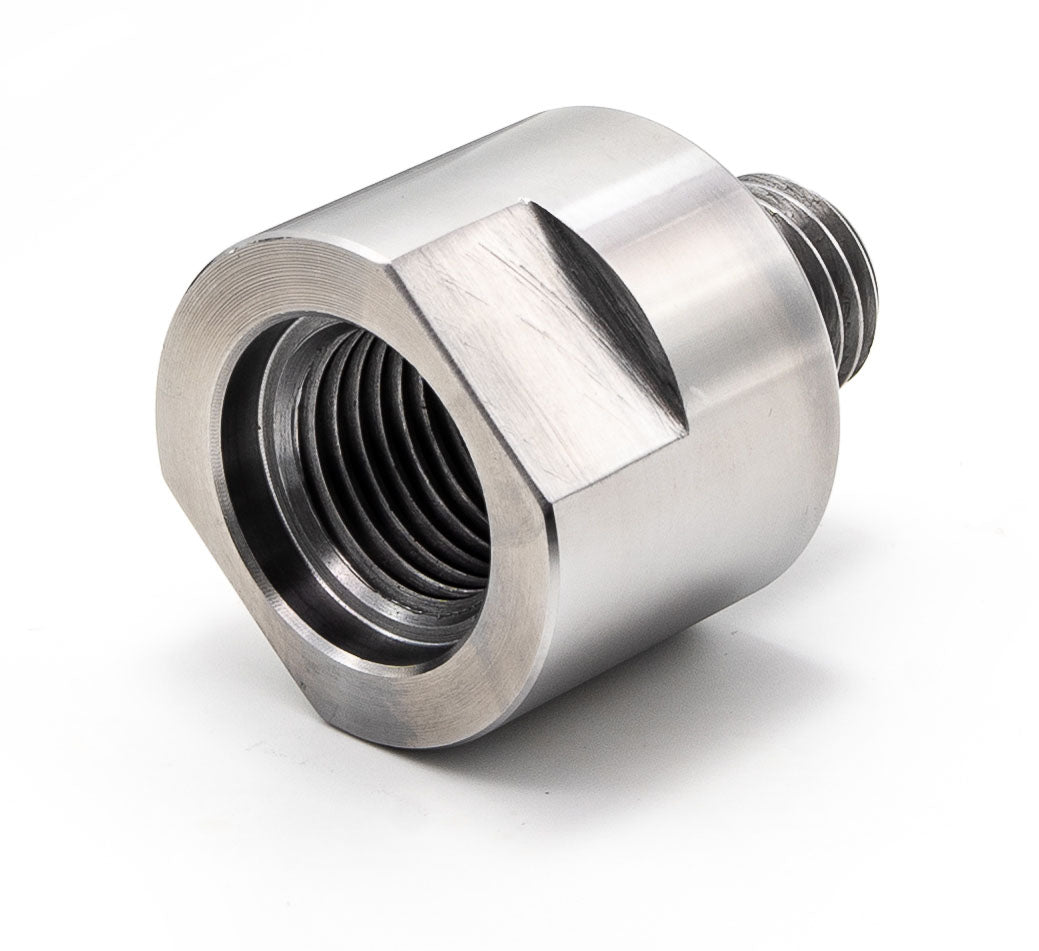

Lathe Headstock Spindle Reducing Adapter, with through hole for vacuum chuck tube. Converts 1-1/4"-8 TPI to 1"-8  TPI.

We've had several requests for customers who own a 1" - 8 TPI vacuum chuck and want to use it on another lathe with 1¼" - 8 TPI spindle threads. With this product, now you can!

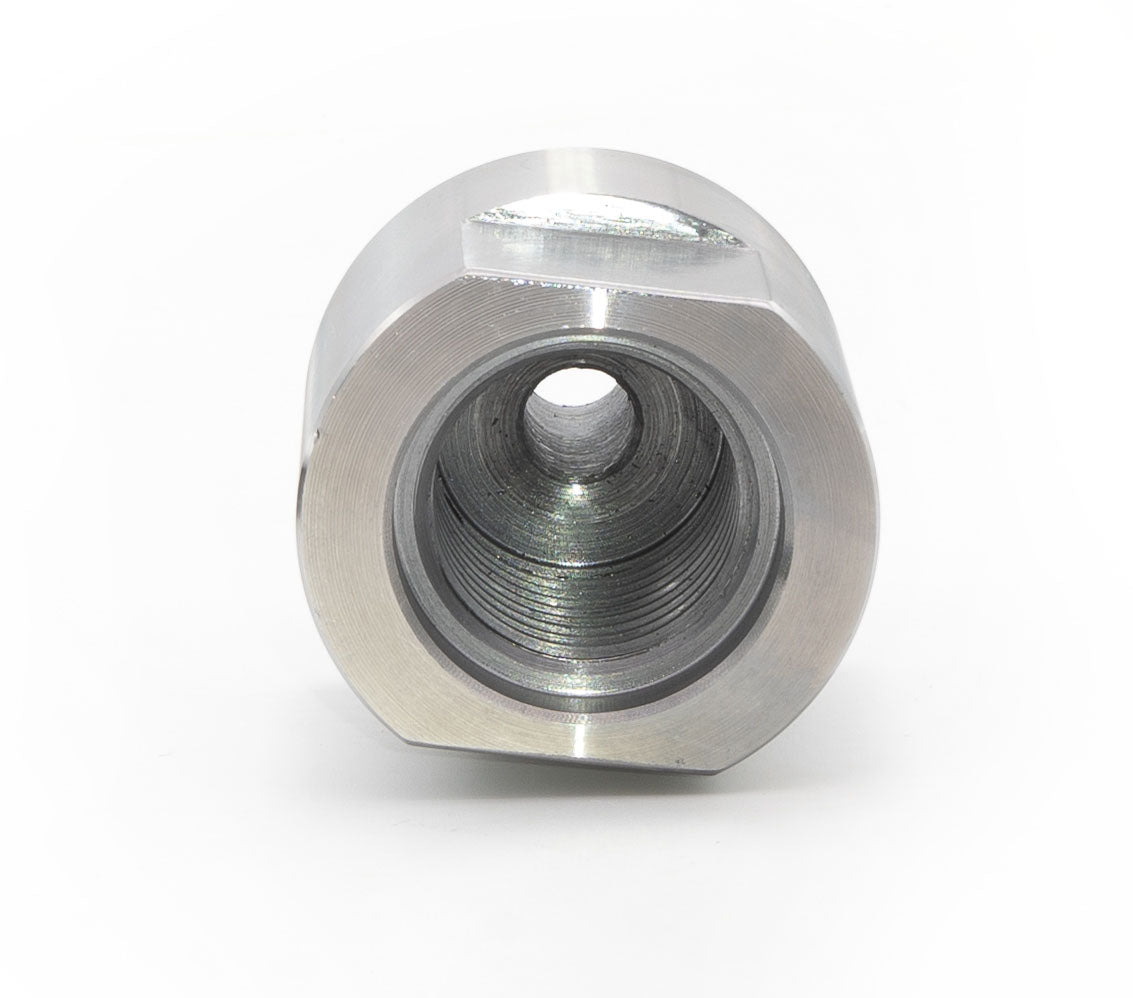

  • Thru hole for vacuum chuck tube to pass through.
  • 1¼" x 8 female threads

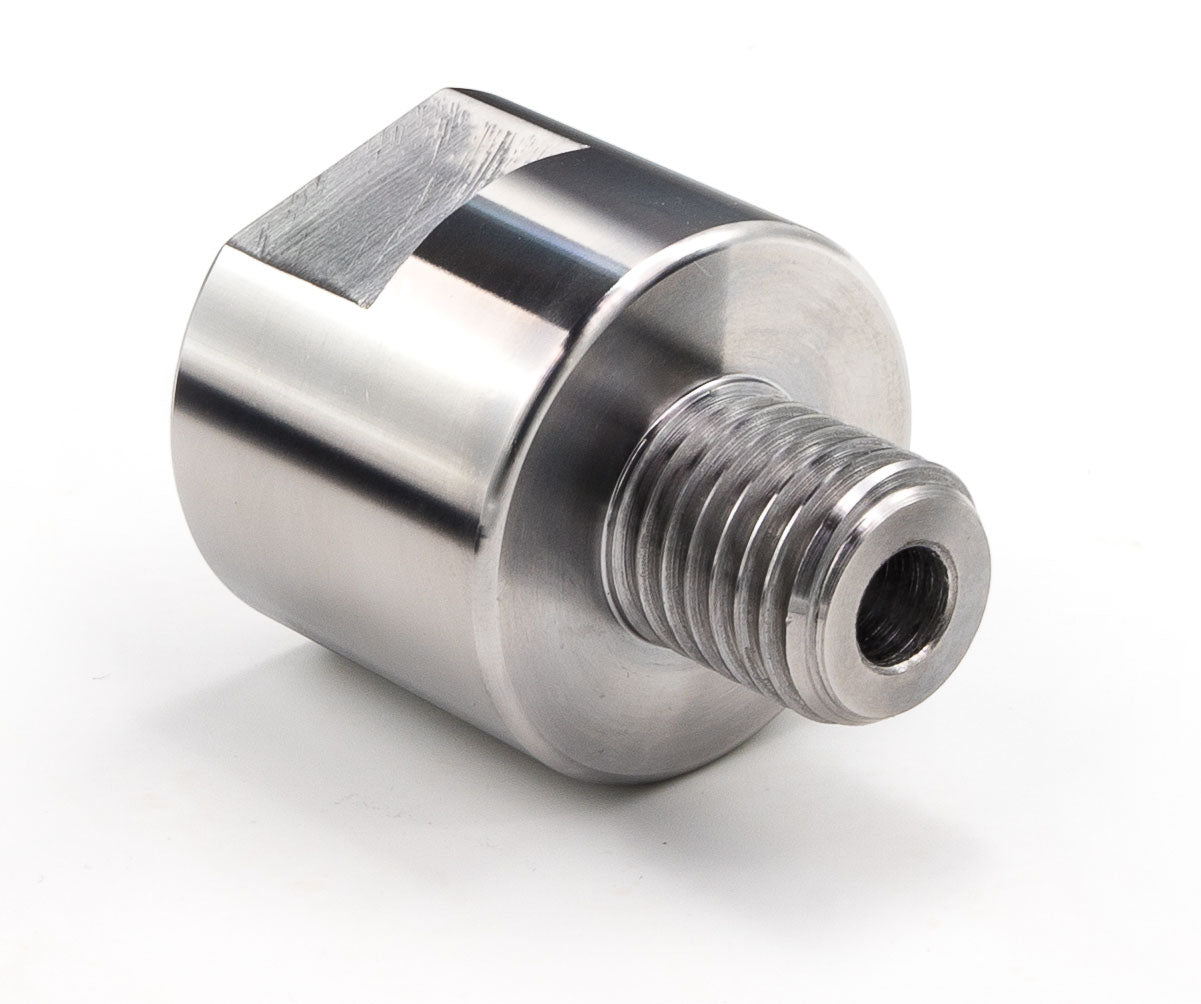

  • 1" x 8 male threads
  • Flat spots on either side allow for easy application and removal


  • OD: 2.125"
  • Overall Length: 2.75"
  • Depth of interior threads: 1.5"
  • Length of male end: 1"
  • Diameter of through hole: .400"
  • Wrench needed to tighten/loosen: 1-7/8"
