Simple Shear Cutting Finisher® Carbide Tipped Woodturning Lathe Tool
★ ★ ★ ★ ★ I Finally Put the sandpaper down! Excellent! Easy to use, perfect for the application, far exceeded my expectation. I touch up with 120/220 grit paper instead of spending hours with 60 grit. This is a well made tool that will last forever. Just buy one. Be happy. - Michael, 2/2020

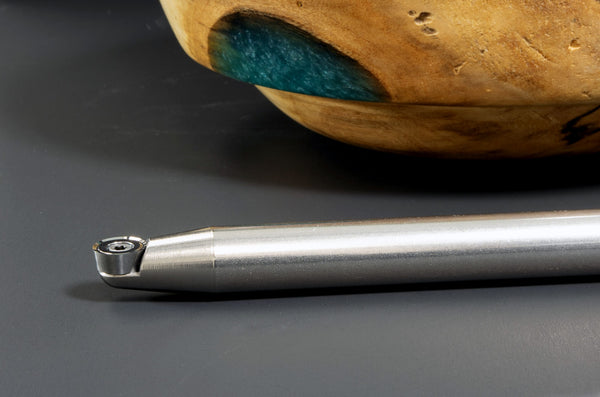

The Simple Shear Cutting Finisher® provides the very best surface finish possible with a carbide tipped woodturning tool. The reason for this is the saucer shaped carbide cutter.

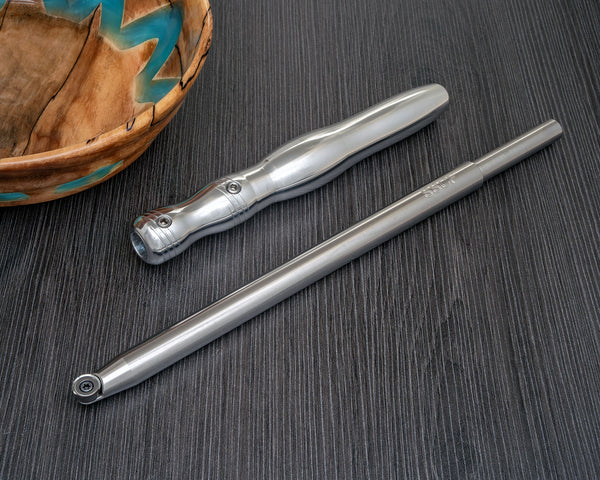

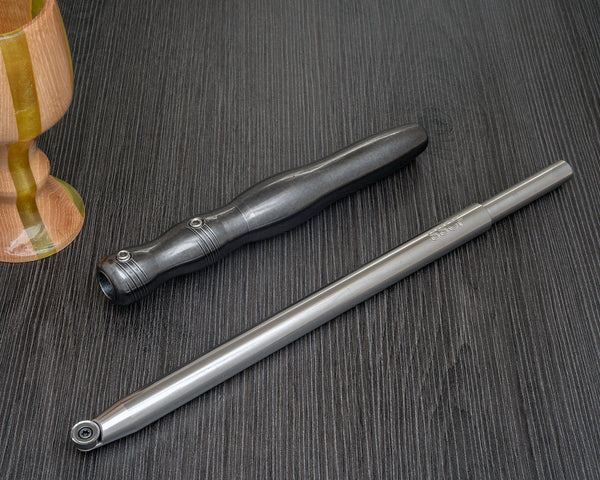

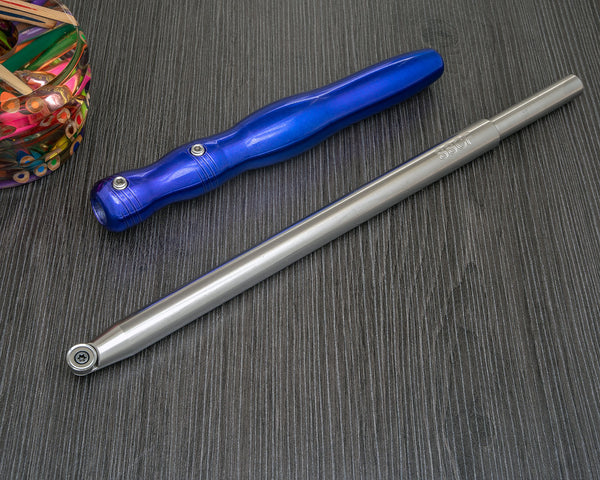

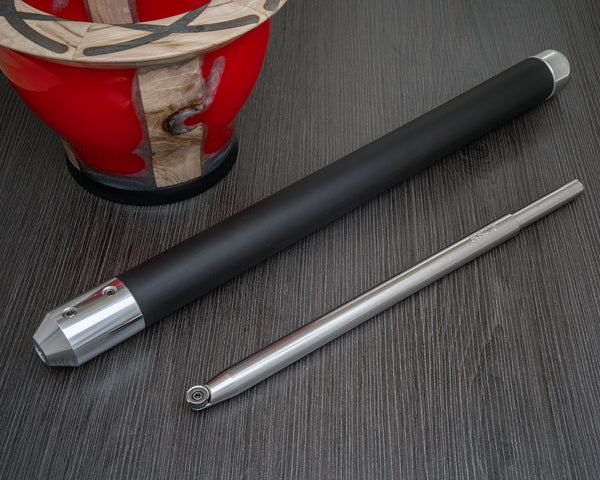

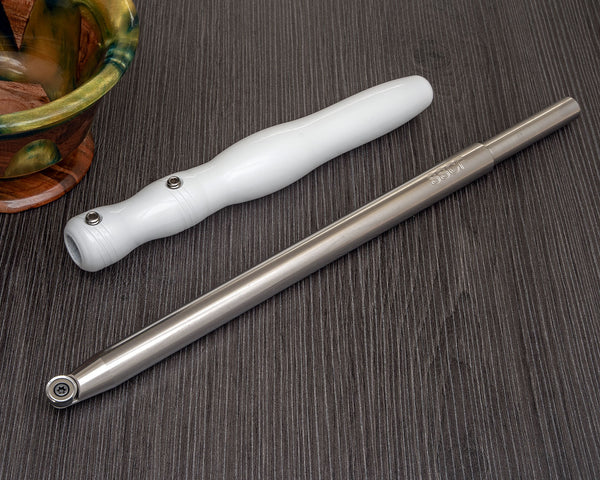

This full-size carbide turning tools is ½" square X 12" long when unhandled. When used in the optional 17" long handle, the tool is 9.5" long and the overall tool and handle length is 26.5". The tool and handle together weigh 2 lbs 5 oz.
The round tool shaft allows the tool to be rotated about its axis so the cutter is presented to the work at an angle. This creates a shearing cut that cleanly slices the wood fibers off the vessel much like a conventional skew or gouge. The result is a superior surface finish that requires little sanding.
Although this is a great benefit on all types of wood it is especially important when turning soft wood such as spalted maple.

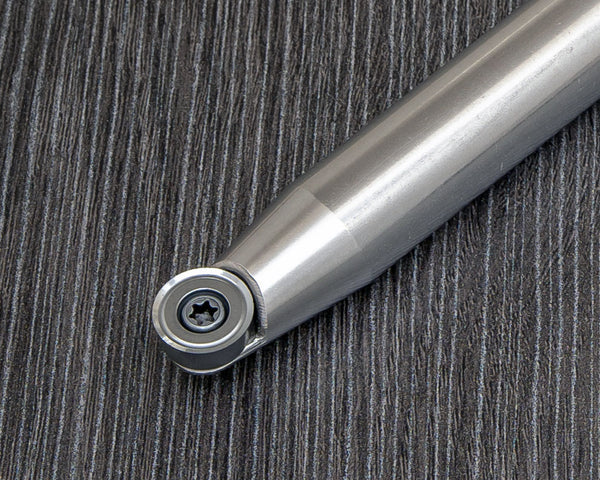

As with all Simple Woodturning Tools® it's all turning and no sharpening. When the small area of this cutter finally becomes dull, simply loosen the screw, with the provided wrench, and rotate the cutter. You will have a super sharp tool once again.
Simple Shear Cutting Finisher® technical details:
- Carbide cutter - ½” diameter - saucer shaped shear cutting
- Overall tool length – 12" (9.5" long when in a handle)
- Tool Shaft – solid stainless steel 5/8” diameter
- Handle Tang - ½ diameter x 2½ length

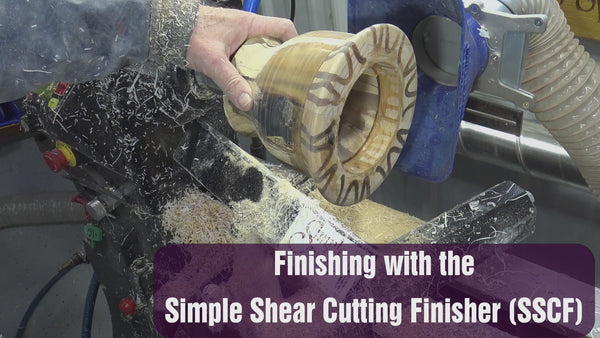

How to use the Simple Shear Cutting Finisher®

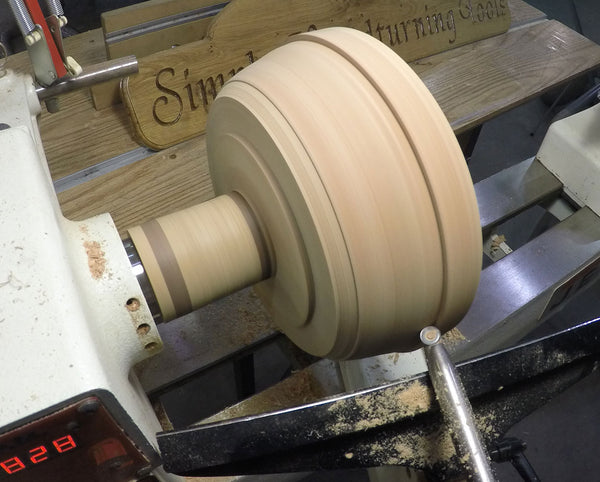

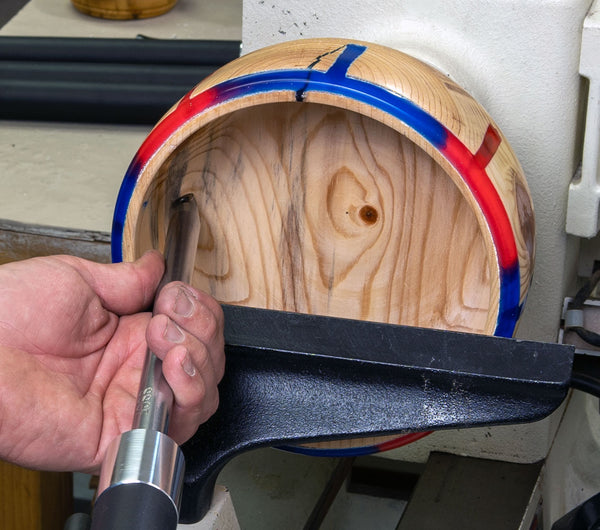

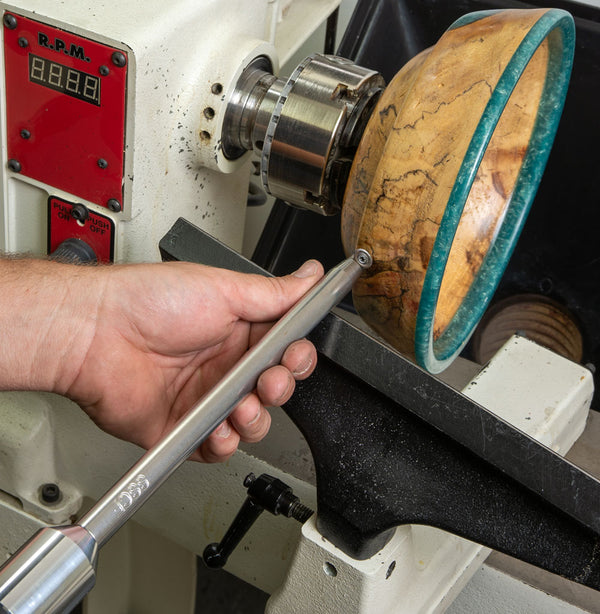

1. Position the tool rest as close to the work as possible so the carbide cutter is at the lathe center line.
2. Place the tool on the tool rest with the tool shaft parallel with the floor.
3. Rotate the tool handle about its axis (similar to twisting a motorcycle throttle) approximately 35° in the direction you will be cutting.
4. While securely holding the tool slowly move the carbide cutter into the work.
5. As you begin to move the tool across the block and your project takes shape carefully rotate the tool until you find the "sweet spot" and the chips will just fly off the cutter. When you master this technique, this tool will become your favorite and you'll use it on every project.
Note: If you experience any catches or it's not cutting cleanly, it's probably due to the spindle speed being too low. If you have these issues, try speeding up the lathe.
